Displaying order list

In the scheduling view of the STOLL PPS the list of the orders managed by the STOLL PPS can be displayed. Following properties of the machine are displayed:

In the order list it is possible to control, which orders with which properties are currently known by the STOLL PPS.
In case the list is longer than the height of the screen, the list can be scrolled.
For finding orders, the filter function can also be used.

The displayed order list can be browsed and filtered using the full-text search and via different criteria.

  1. You are signed in.
    1
    Click on Orders in the main menu.
    2
    In the navigation bar click the Scheduling tab.
  1. The order list (1) is displayed as part of the scheduling.

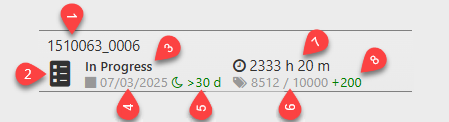

Details of the display in the order list

Signification of the individual fields:

  1. Name of the order
  2. Symbols for the order type, as selected when creating a new order. Categories of Orders
  3. State of the order
  4. Time stamp for state
  5. Deviation marked by color
  6. Completed pieces of the order
    Example: 8512 of 10000 pieces are completed.
  7. Total of the pure production time of all pieces, all machines involved, and the original quantity of pieces.
  8. Corrected quantity of pieces

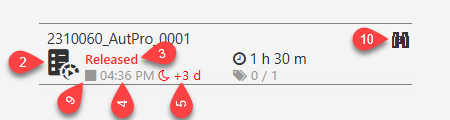

Example for APM

2

Symbol of autoproduction order

3

Red text indicates a delayed order.

4

According to the forecast, the order will end on the same day at the specified time.

If the order ends on a different day, the end date is shown here.

5

According to the schedule, the order is at least 3 days behind schedule.

Square
End time of the order

Triangle to the right
Expected end time

Checkmark
Completion of the order

10

Binoculars
Order-related notifications are enabled for this order.
Activate/deactivate user-specific order notifications
